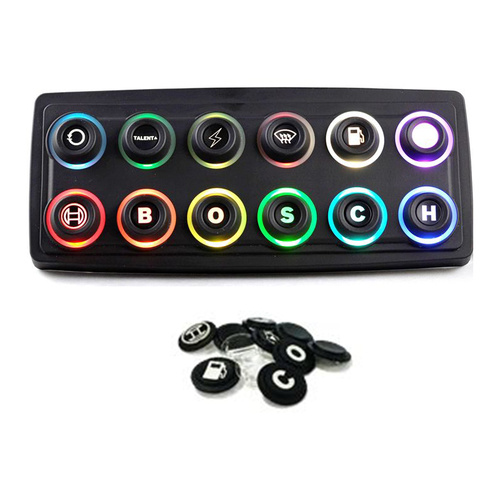

The CAN Keypad CK-M12 allows for simplification of the dashboard by offering 12 buttons and 9 additional wired inputs to be evaluated and transmitted via CAN bus to other devices on the bus. Each button has an individually addressable LED indicating ring that can be used to acknowledge a button press event, indicate status of a device, or alert the driver to a fault condition. No special configuration software is needed, all feedback logic is done by PBX, DDU or ECU. Each keypad is supplied with 15 black inserts, optional insert kits are also available.

Features

  • 12 standard buttons with color indicator rings
  • 9 additional digital switch inputs
  • Moveable button inserts
  • CAN input / output

Characteristics

  • Signal output - CAN

  • CAN transmit rate -100hz*

  • CAN baud rate - 1Mbaud*

  • TX ID - 0x800*

  • RX ID - 0x801*

  • TX Data - 1 bit status for each input

  • RX Data - 4 bit integer for each indicator color, 4 bit integer for brightness

  • * Custom CAN IDs / baud Rate Optional Upon Request

  • Note: CK-M12 DBC file available for CAN configuration



Accessories

Insert Road Race Kit

Order number: F 02U B0U 022-01

Insert Drag Race Kit

Order number: F 02U B0U 023-01

Insert Alpha/Numeric Kit

Order number: F 02U B0U 024-01



(F02UV0U328-02)

SKU F02UV0U328-02
Brand Bosch
Shipping Weight 3.0000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.300m
Shipping Cubic 0.006000000m3
